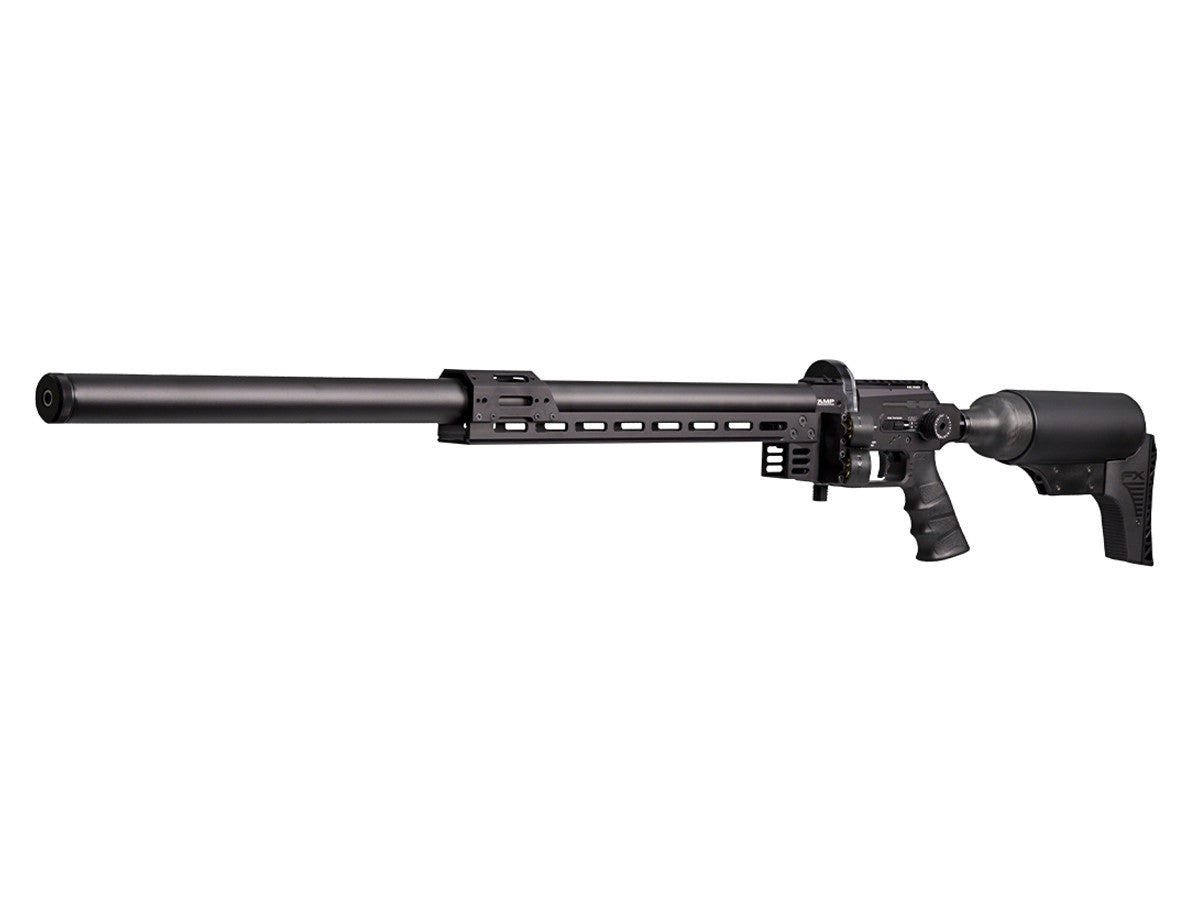

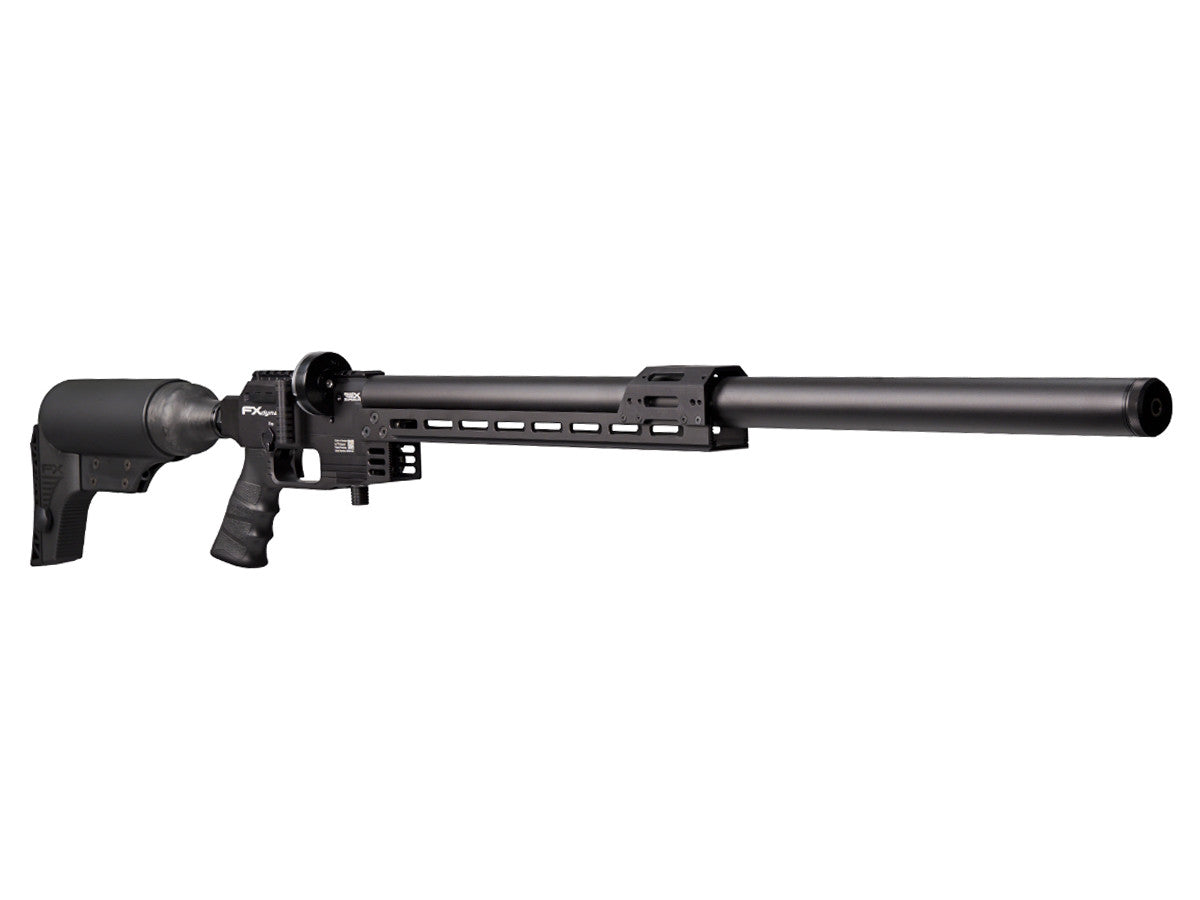

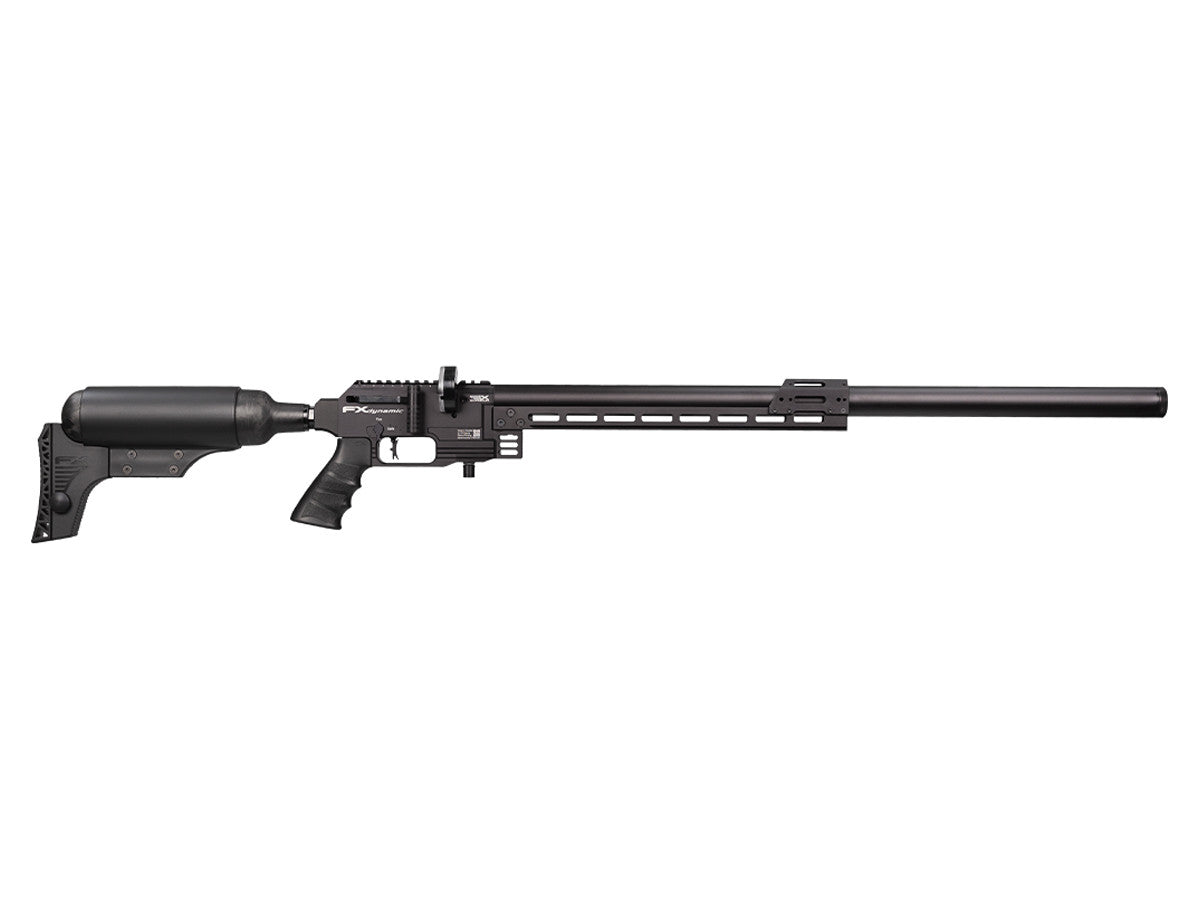

The FX Dynamic is a pneumatic rifle built for more than competition. It’s a rifle that wants to hunt. Harnessing technology at the forefront of airgun performance, the Dynamic brings higher air capacity and configurations than its competition focused sister rifle, the FX Panthera. The Dynamic also includes a .35 caliber option that will allow up to 200 ft lbs of energy while maintaining world-class FX accuracy and precision. This purpose-built slug rifle utilizes its namesake breech block. The Dynamic block has a one-piece, compact, short-impulse/high-power balanced valve which is both extremely efficient while also allowing a tremendous and precise amount of air with each shot. Tuned properly the rifle will achieve low single digit standard deviations, one of just many advantages the FX Dynamic offers. The block is fed by the cutting-edge Over-The-Barrel Power Plenum, a design only found with FX. This allows multiple plenum lengths to be employed to match the caliber and power of the rifle. This plenum also applies consistent regulated pressure to strengthen barrel rigidity.
Comes delivered in a tailored cut-out hard-case (except for VP versions).
The FX Dynamic can be built and offered in multiple configurations:
The Dynamic Express rear 480cc carbon fiber bottle with molded tank cover. Arca rail complete with M-LOK sections, bridge and a barricade block.
The Dynamic Double Express replaces the front Arca rail with an additional bottle. This allows for an immense amount of onboard air storage that can easily surpass 1,000cc of air volume.
The Dynamic AR uses a front placed carbon fiber bottle and replaces the rear bottle with a folding AR stock receiver (AR stock and buffer tube sold separately).
The Dynamic VP rear 400cc aluminum bottle with molded cheek cover. Ships without a hardcase and front arca rail, leaving it bare for future upgrades or to be configured to shooters needs.
| Cocking system |
Right hand positioned sidelever with an ambidextrous mount to be able to relocate sidelever on left side for lefthanded shooters. |
| Magazine type |
Removable high capacity, easy load.
Newly developed deeper lid to accommodate longer length slugs.
Maximum ammunition length, 13 mm (0,51”)
Made in durable injection-moulded POM
21 shot when Cal .177
18 shot when Cal .22
|
| Stock |
Ambidextrous
Rear
Recoil pad adjustable in height and length of pull.
Grip
AR15 style grip
|
| Calibre |
4,5 (.177)
5,5 (.22)
|
| Barrel |
Dynamic Express 500:
Superior STX barrel liner.
Dynamic Express 600-700:
Superior Heavy STX barrel liner.
|
| Shot capacity |
Dynamic Express 500:
4,5 (.177) N/A
5,5 (.22) 180 shots with 15.89 gr pellet at 870 fps
Dynamic Express 600:
4,5 (.177) N/A
5,5 (.22) 128 shots with 22 gr hybrid slug at 900 fps
Dynamic Express 700:
4,5 (.177) N/A
5,5 (.22) 144 shots with 22 gr hybrid slug at 900 fps
|
| Fill pressure |
Max 250 bar (3625 psi) |
| Safety |
Switch style |
| Optics |
Picatinny rail with built in 6 MIL/20 MOA angle (30 MOA from late 2023)
Marked with figures on the right side for easy repositioning of optics.
|
| Muzzle |
Built-In Shroud system (variations may occur depending on country). |
| Pressure gauge |
Dual Angled Gauges:
Air tube pressure WIKA
Regulator pressure WIKA |
| Trigger |
Adjustable Match Trigger
Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.
|
| Velocity |
N/A |
| Energy |
Dynamic Express 500:
4,5 (.177) N/A
5,5 (.22) up to 70 ft/lbs with 34gr slug at 960 fps
Dynamic Express 600:
4,5 (.177) N/A
5,5 (.22) up to 82 ft/lbs with 34gr pellet at 1040 fps
Dynamic Express 700:
4,5 (.177) N/A
5,5 (.22) up to 96 ft/lbs with 40gr slug at 1040 fps
Note: above figures are maximum FAC Power output using tungsten hammer.
|
| Air capacity |
Express: 480 cc air cylinder + plenum volume
Express VP: 400 cc air cylinder + plenum volume |
| Air cylinder |
Express: Carbon fibre wrapped air tank, removable.
Express VP: Aluminium bottle, removable. |
| Length |
500: 990mm – 39″
600: 1107mm – 43,5”
700: 1207mm – 47,5″ |
| Weight |
500: 3,2 kg – 7 lbs
600: 3,4 kg – 7,5 lbs
700: 3,5 kg – 7,65 lbs |
| Charging |
Rear Foster Quick Disconnect, dust cap included. |
| More features |
AMP MkII Regulator
Externally Adjustable
Quick Tune System
Micro and macro adjustment of hammer spring tension
Case
Tailored cut-out hard-case.
|
| Plenum |
500: Macro Plenum – 62 cc
600-700: Magnum XL Plenum – 156 cc |
